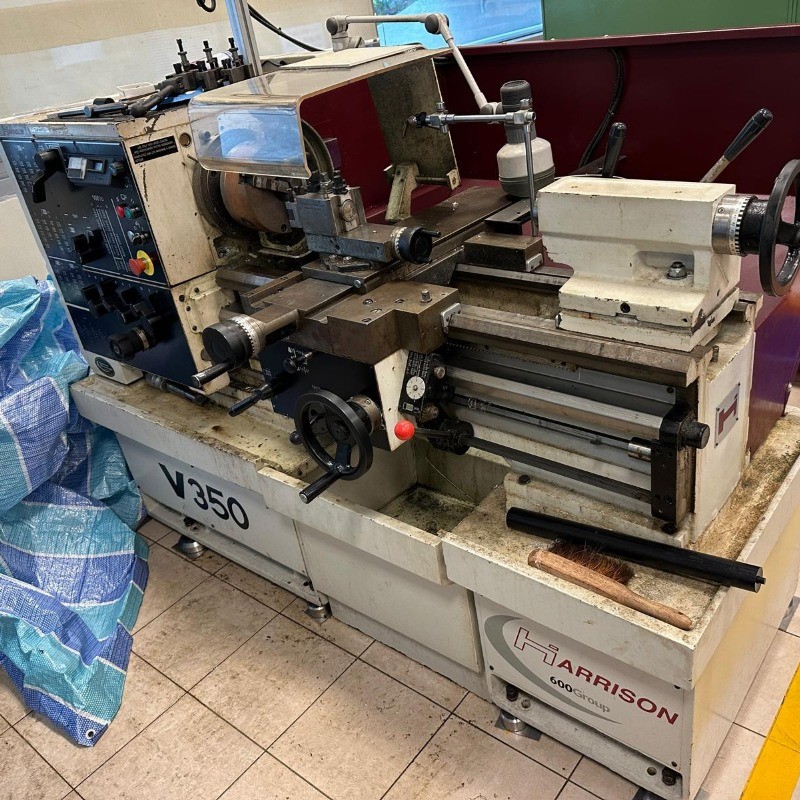

Harrison Lathe Model V-350 dia 350mm x 750mmL

SPECIFICATIONS : Centers Height 170mm (6-11/16”) Admit Between 650mm (25-1/4”) Swing Over Bed 350mm (13-3/4”) Over Cross Slide 196mm (7-3/4”) In Gap Diameter 535mm (21”) Length 165mm (6-1/2”) Spindle Bore 42mm (1-5/8”) Nose D1-4 Camlock Morse Taper in Nose 4 MT Speeds Number 3 infinitely variable Range 17 to 3250rpm Motor 7.5kW Leadscrew Diameter 32mm (1-1/4”) Thread 6mm pitch or 4 TPI Threads Metric Pitches 51 from 0.2 to 14mm Imperial Pitches 56 from 2 to 56 TPI Module Pitches 20 from 0.2 to 3.5 MOD Diametral Pitches 20 from 8 to 56 DP Feeds Metric 42 from .036 to .4mm/rev Imperial 42 from .0014 to .096in/rev Cross Slide Width 180mm (7”) Travel 250mm (9-7/8”) Top Slide Width 100mm (4”) Travel 100mm (4”) Tailstock Quill Diameter 63mm (2-1/4”) Travel 145mm (5-11/16”) Morse Taper 4 MT Weight 1350kg (2970lbs) Dimensions L x W x H 2.03x1.35x1.65m (80x53x65”)
